Double Suspension Set for ADSS is mainly used for large height difference, span more than 800 meters or unilateral overhang angle is 30 º -36 º line tower connection.

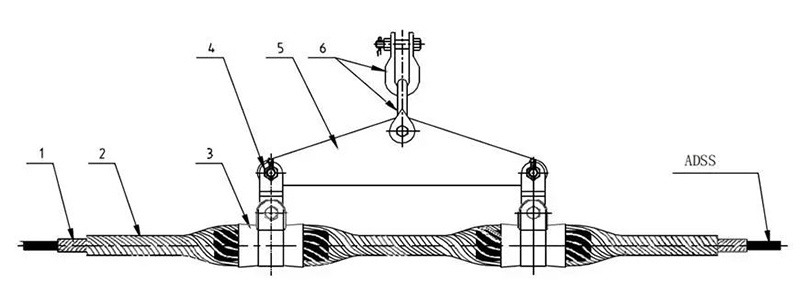

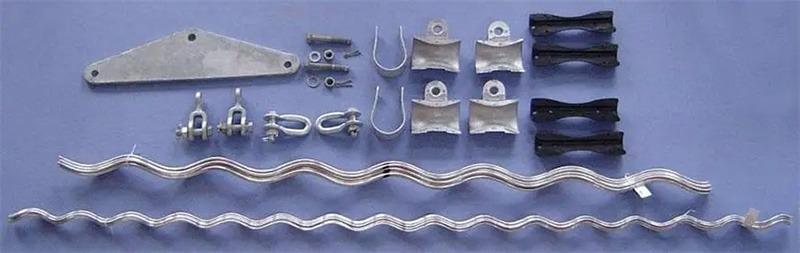

1. Structural Reinforcing Rods 2. Dead-end Component 3. AGS Clamp
4. PS-link 5. Yoke Plate 6. U-Clevis
