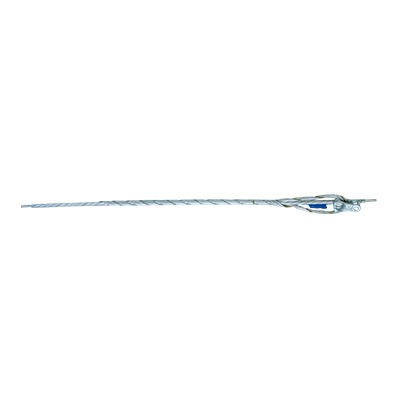

Preformed Dead-end for OPGW
Dead-end for OPGW is mainly used for the corner towers, the middle tower and Terminal Tower successive connections.
Product Description: Dead-end for OPGW
The Dead-end for OPGW is primarily designed for successive connections in corner towers, middle towers, and terminal towers. Crafted mainly from aluminum-clad steel wire, the screw clamp boasts exceptional tensile strength, providing protection and support to fiber optic cables while functioning as a damping component.

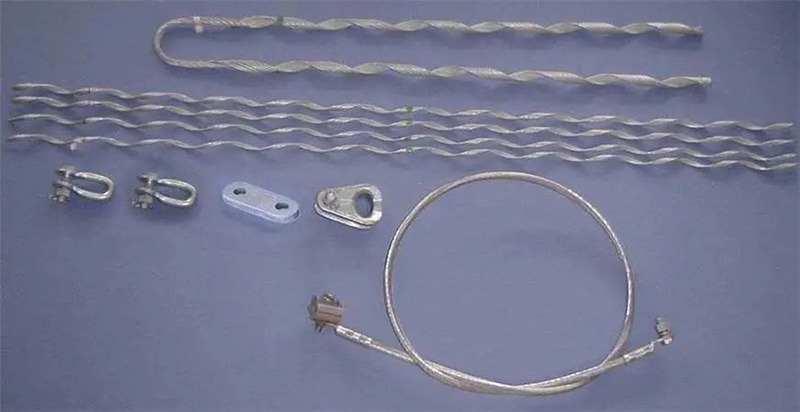

The clamp's grip on the cable reaches a rated tensile strength of no less than 95%, fully meeting the mechanical property requirements for power cable installations. The anti-chafing fiber optic cable assembly includes:
Outer preformed wires
Inner pre-twisted wires
Supporting connection fittings
Preformed Dead-end offers outstanding fatigue resistance, featuring a simple structure that enables easy and quick installation—no special equipment required. This significantly reduces construction costs.
Pictures and Illustrations
Images of Dead-end for OPGW (including structure details, installation scenarios, and component close-ups) will be displayed here.

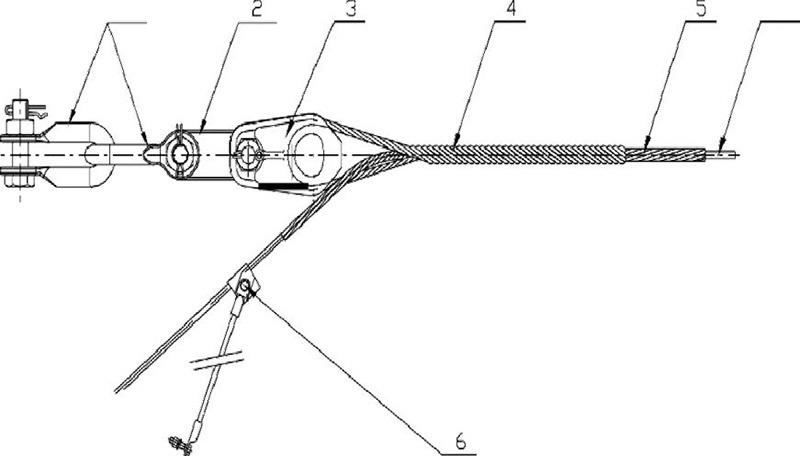

1. U-Clevis 2. PD-Clevis 3. Thimble 4. Dead-end Component 5. Structural Reinforcing Rods 6. Grounding Clamps

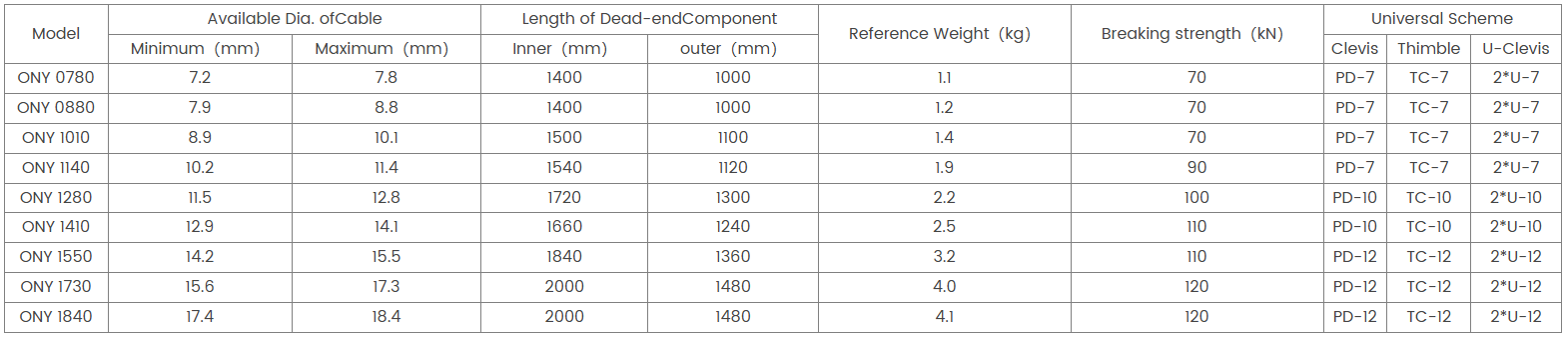

Model Specification
Note:
1. Rods material: Aluminum clad steel wire.
2. The above configuration is conventional configuration. If special configuration is required, consult the technical department of the company.
