Preformed Suspension Clamp For OPGW

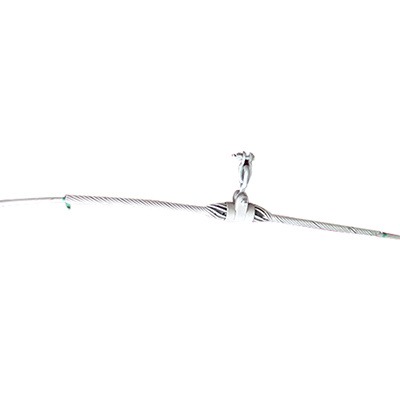

Suspension Set for OPGW

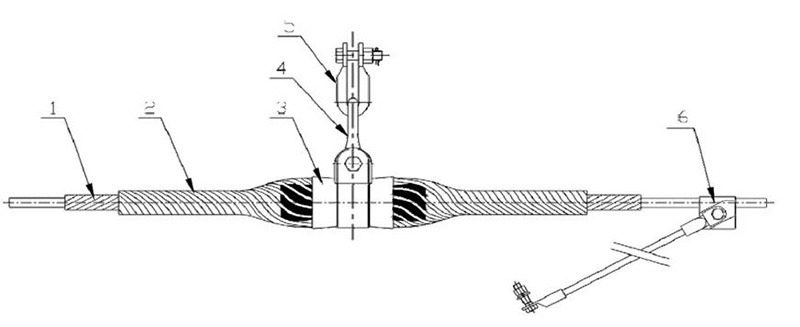

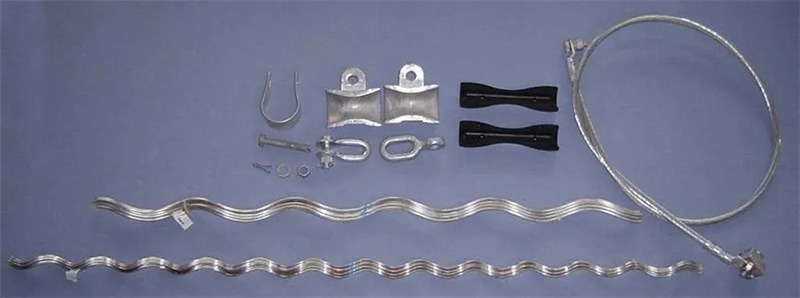

The Suspension Set for OPGW is primarily designed for connections on straight-sided drop towers or line towers with a turning angle of less than 15°. Composed of inner and outer pre-twisted wires, a hanging head, and supporting connecting fittings, this set delivers reliable performance in overhead installations. Its clamp grip strength exceeds the rated tensile strength of the fiber optic cable by 10%–20%, effectively transferring axial loads while distributing radial compressive stress. This design better protects the fiber optic cable, avoiding bending stresses and stress concentration.
Equipped with excellent fatigue resistance, the Suspension Set for OPGW also functions as a damping support for power cables, enhancing overall system stability.
Applications
OPGW prefabricated suspension clamps are mainly used to support overhanging OPGW fiber optic cables. They are suitable for OPGW cables, conductors, and ground wires in transmission lines, with recommended use on lines with a turning angle of fewer than 30 degrees.
Features
Reasonable static stress distribution and strong resistance to dynamic stresses (e.g., vibration and fluctuation). The grip force on the cable reaches 10%–20% of the cable’s ultimate tensile strength.
No rigid contact with the cable (or conductor), minimizing wear and damage.
Made from high-quality materials, ensuring elasticity, toughness, fatigue resistance, corrosion resistance, long service life, and operational safety.
Not only protects the cable but also features a round, smooth shape that significantly reduces corona discharge and electromagnetic loss.
Pictures and Illustrations
