Preformed Suspension for ADSS
The preformed suspension clamp is suitable for aluminum base conductors, aluminum coated steel conductors and galvanized steel strands. It is designed to reduce static and dynamic stresses at support points, thereby protecting conductors or strands from vibrations. It also protects the conductors in the bracket from impulses and power flashovers.
Pictures and Illustrations: Preformed Suspension Clamp
The preformed suspension clamp is specifically designed for compatibility with aluminum-based conductors, aluminum-clad steel conductors, and galvanized steel strands. Its key functions include:
Reducing static and dynamic stresses at support points to protect conductors/strands from vibration damage
Shielding bracket-mounted conductors from impulse forces and power flashovers

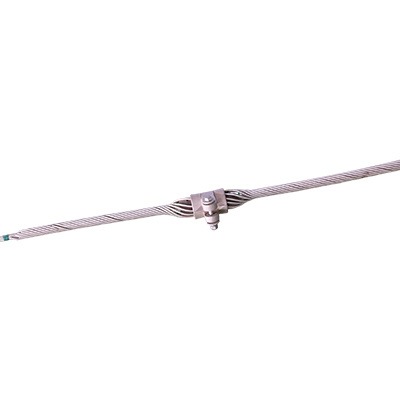

Main view of preformed suspension clamp showing helical structure and conductor compatibilit
Installation diagram: Clamp mounted on aluminum-based conductor with support hardware
Cross-sectional view demonstrating stress reduction at support points
Diagram of how the clamp mitigates vibration damage to galvanized steel strands
Real-world application: Clamps securing aluminum-clad steel conductors on a transmission tower

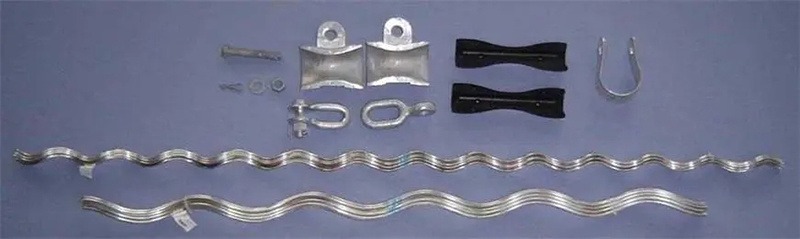

1. Structural Reinforcing Rods 2. Dead-end Component 3. AGS Clamp 4. Eye Chain Link(Type ZH) 5. U-Clevis
